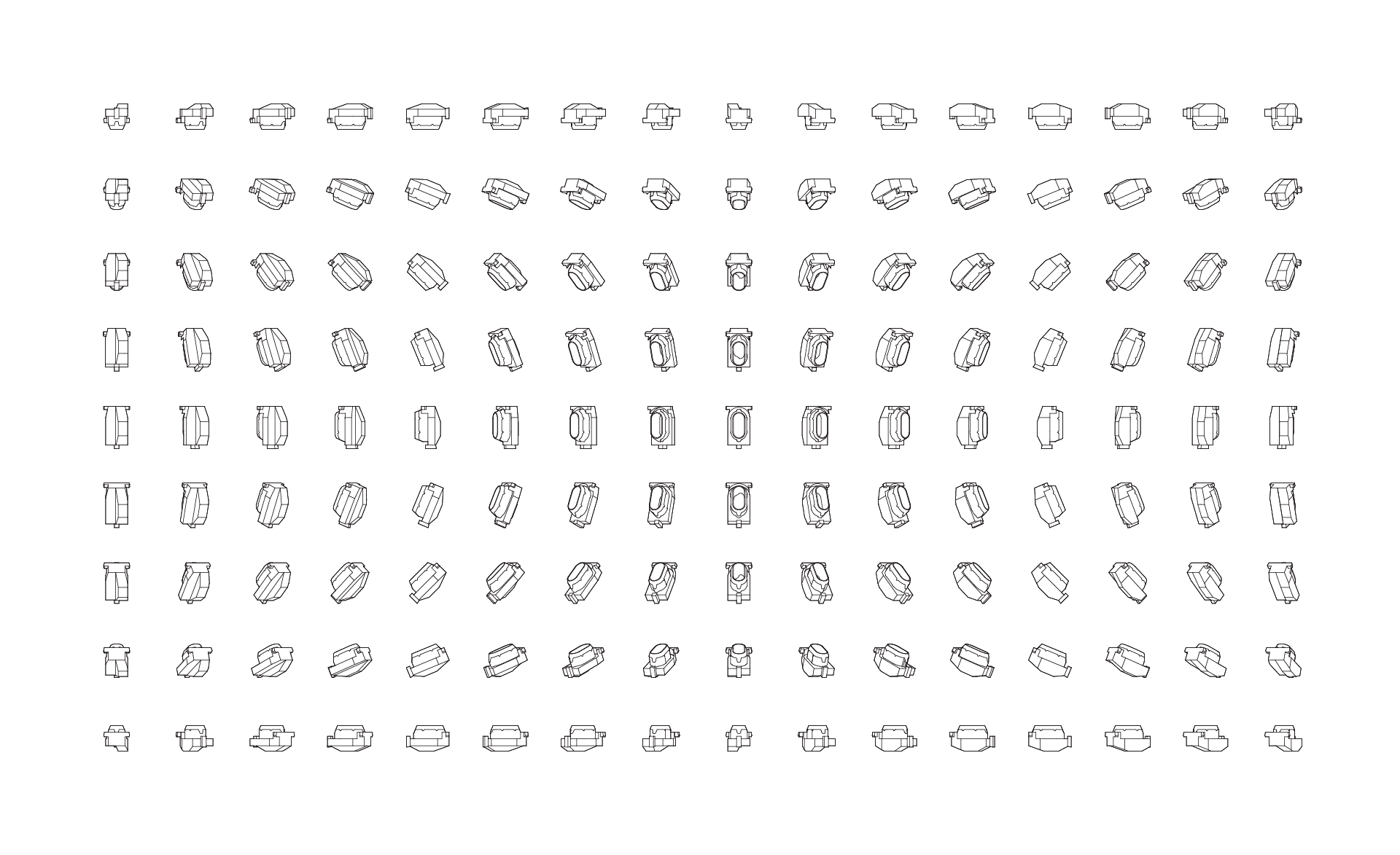

30-Round Stack was my way of learning how a gun's magazine works; I bought a 30-round magazine for the MPX weapon system, took it apart, and created vector illustrations of each piece at 144 different angles (that's the total number of angles if you were to rotate the subject in 15° increments in each direction).
Each piece was modeled in Fusion 360 for exact reference and then recreated in Illustrator.  Because of this process being so exact, the size of each object is accurate relative to the others.
9mm Bullets
Magazine Follower
Magazine Release
Magazine Floor Plate
